IP67 RFID security patrol clocking device
Unique Features

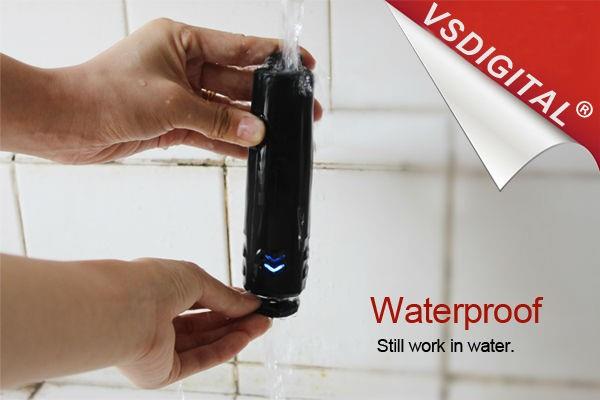

1. Durable, it is sealed totally by Poly-carbonate, the whole body are encased in special rubber, making it tamper- resistant and waterproof.
2, Large storage capacity ,it can store 129.536pcs records circularly .

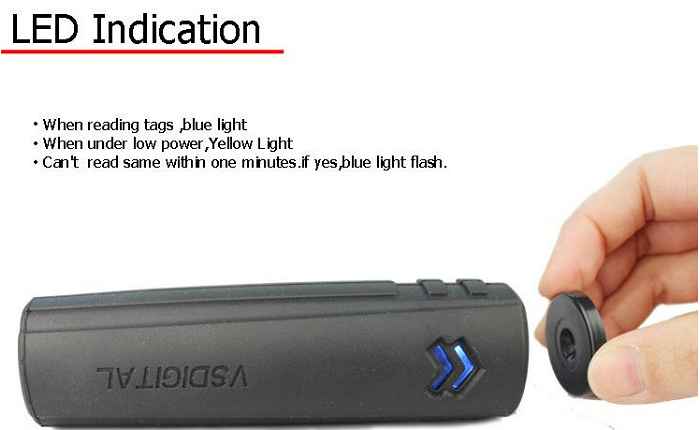

4, low power reminder, will indicate yellow light, let guards charge in time, don’t delay patrolling.

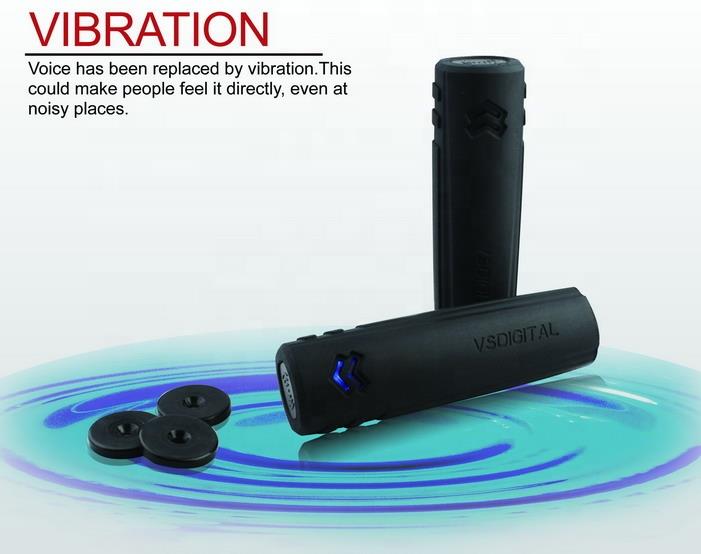

5,Sense and vision, reader will flash blue LED light and vibration when read successfully,
6, Power off protection, data can keep ten years without power
7, Impact records ,it can generate records in software if someone breaks it on purpose.
8, USB-B port, it’s more durable than mini USB
Packaging & Delivery
1. Standard Box: 21*15*7.
2. One standard set including 1 reader, 1 charger, 1 USB cable, 1 holster, 1 stand-alone software. And some 125Khz RFID tags,patrolman tags,event wallet.
3. Shipping terms: DHL/UPS/TNT/FedEx/EMS etc.., please contact supplier to get latest shipping time to your country.
4. Enough Stocks, but for large quantities, please contact supplier to get accurate leading time.

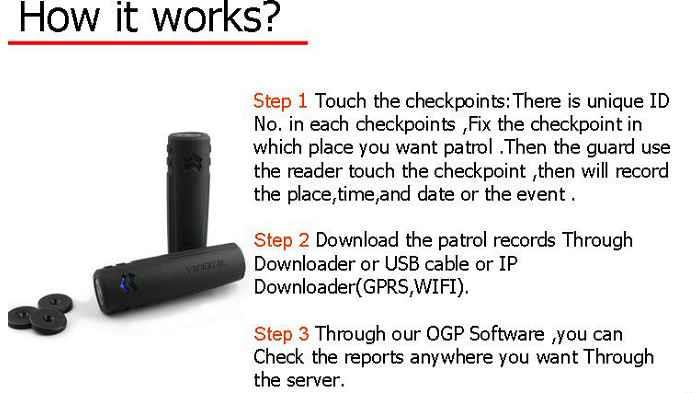

Read checkpoints:
The reading distance is 2-3cm. The indication light will flash and vibrate one time when read tags successfully. The patrol data has not been saved if read the same tag without interval.

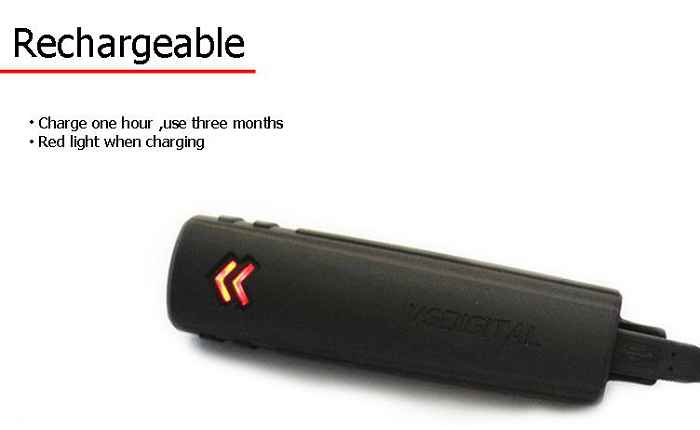

Charge
Two ways to charge
1 Connect the v1KingGuard device with computer by the USB-B interface cable
2 Connect the v1KingGuard device with charger by the USB-B interface cable
3 Charge time :70 minutes
4 Indication :when charge has been finished ,the red LED will be off.
FAQ
² can not read tags
1 The indication light does not flash when read tags , please check whether the power is low.
2 the interval time of reading tags should longer than I second.
² can not communicate with computer.
1 check whether the v1KingGuard device has been connected well with computer.
2 check whether the USB driver has been installed .
3 check whether the device model has been chosen rightly.
